02. Convolutional Neural Network

---

Convolutional Neural Network

---

Prerequisites

1. Multi-layer Perceptron <b>Multi-layer Perceptron</b> $ f(x) = \sigma(Wx) $ have a simple model that that <span style="color:#FFD5D5">have a parameters explosion and just using flatten data</span>.

---

What is Convolutional Neural Network(CNN)

1. What is Convolutional Neural Network(CNN)?

• A Model that use learnable filters composed of multiple channel with user-defined kernel size.

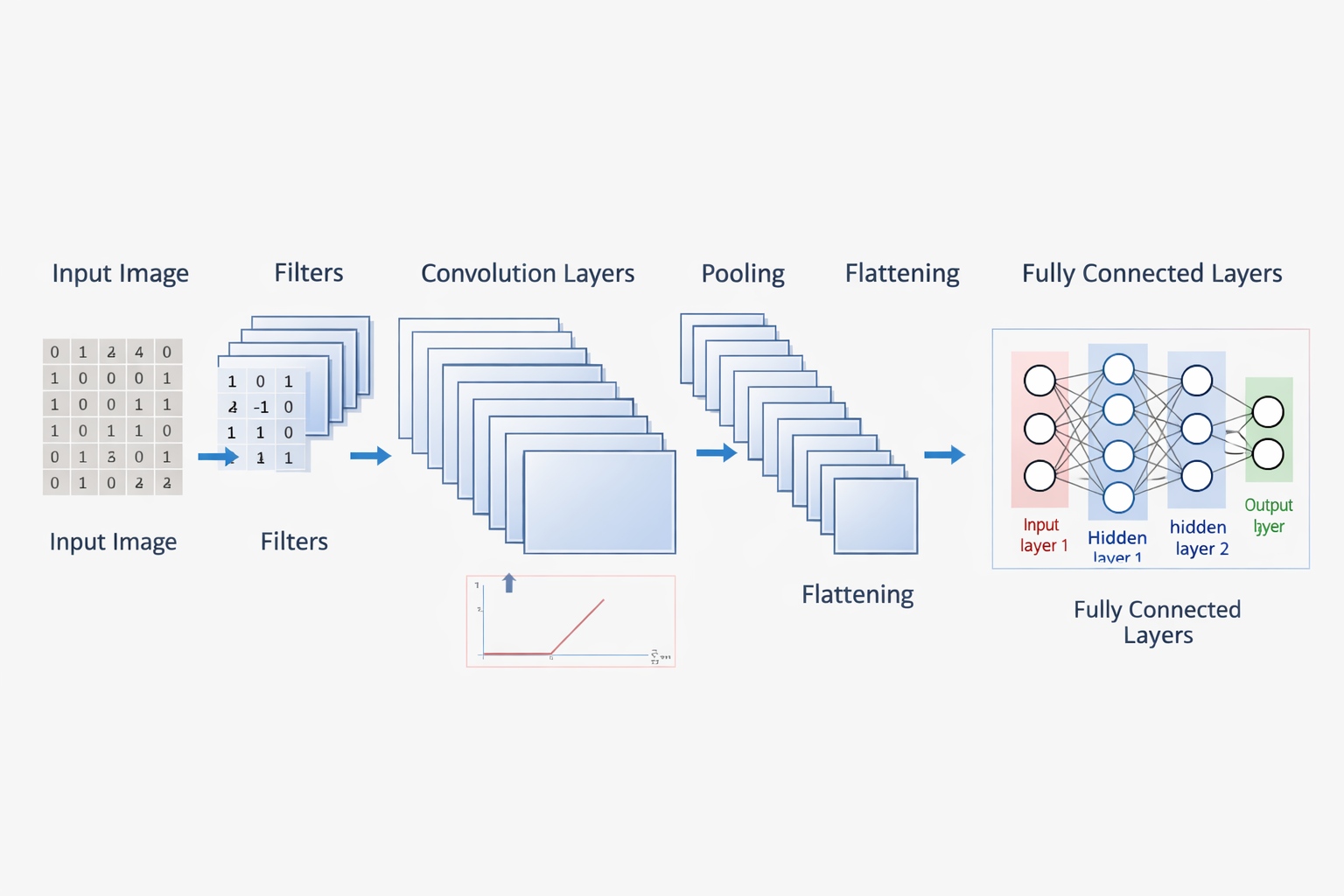

• Structure

  \[Input \rightarrow Filter \rightarrow Activation \rightarrow Filter ... \rightarrow Softmax \rightarrow Output\]
• Can have good performance with smaller parameters than FC parameters
• Sometimes it is interpretable model why this is work.

2. Why use Convolutional Neural Network(CNN)?

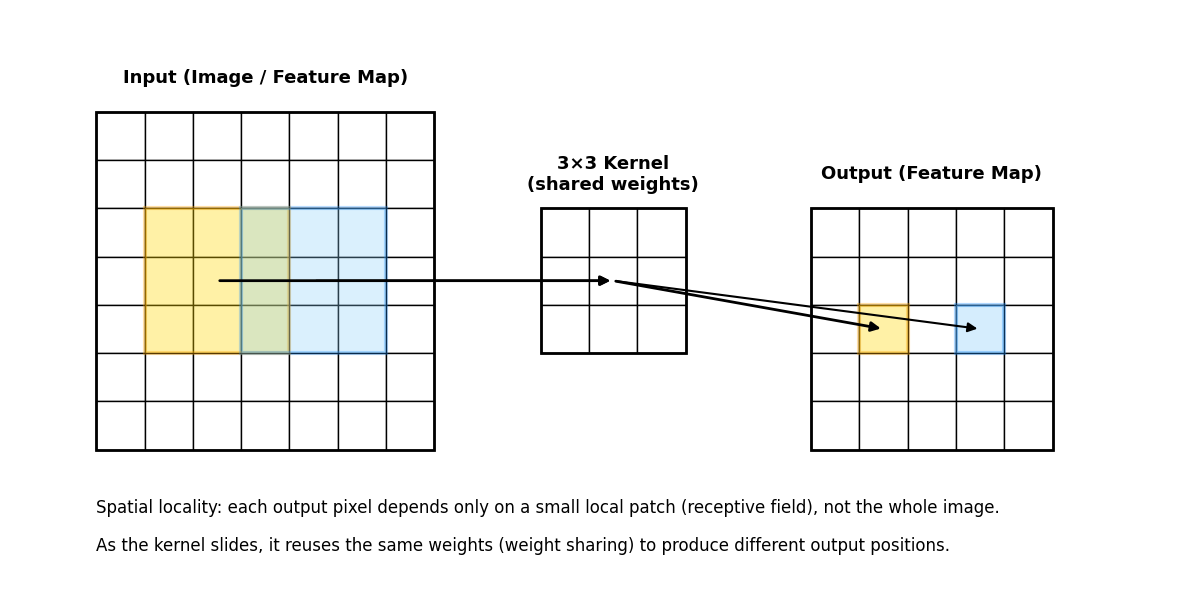

 Spatial Locality

Each filter looks at NEARBY PIXELS ONLY

instead of connecting everything like FC, looking at local patches

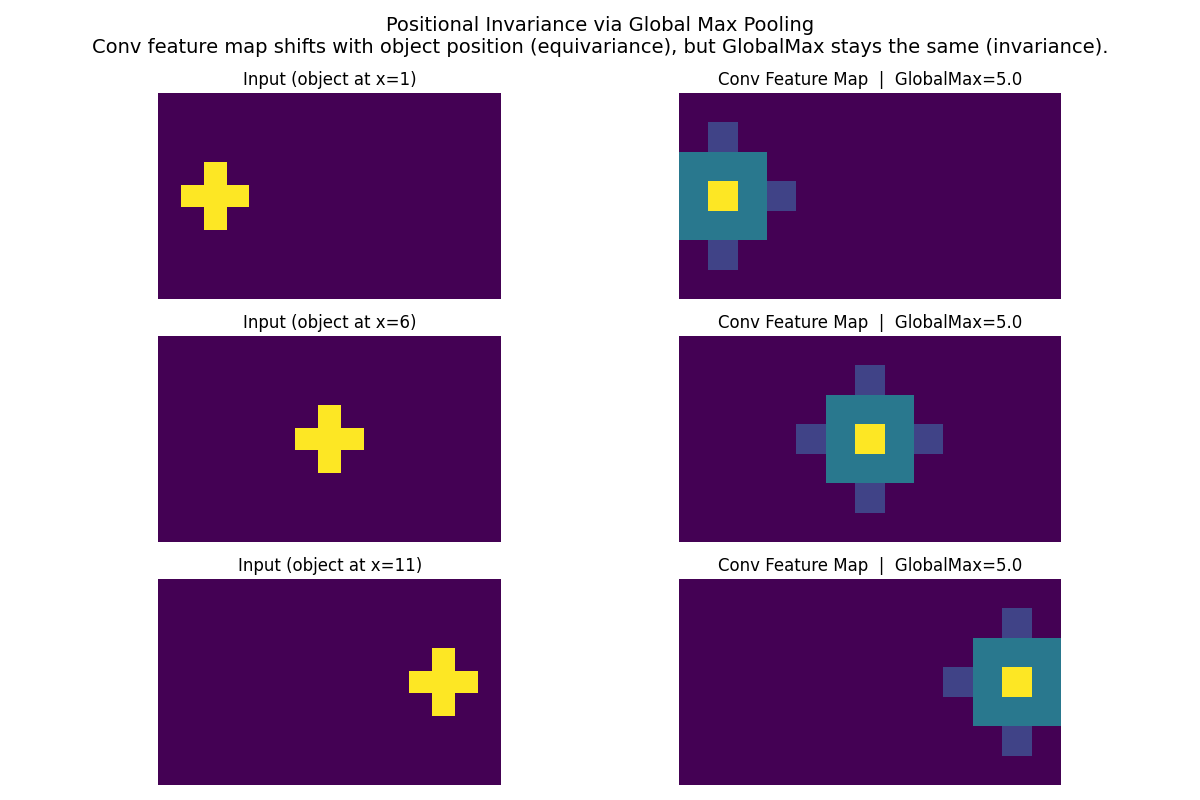

Positional Invariance #### <b>Same filters are applied to ALL LOCATION in the image</b> Reuse the same filter across space.

Aspect	FC	Conv
Connectivity	Global	Local
Parameters	Huge	Small
Spatial info	❌	✅
Weight sharing	❌	✅

3. How use Convolutional Neural Network(CNN)?

Convolution

1. 2D Discrete Convolution

\(y(i,j) = \sum_{m=0}^{K_h-1} \sum_{n=0}^{K_w-1} x(i+m,; j+n), w(m,n)\)

• $x$ : Input
• $w$ : Kernel
• $y$ : Feature map
• $K_h, K_w$ : Height, Width
• $(i,j)$ : coordinate

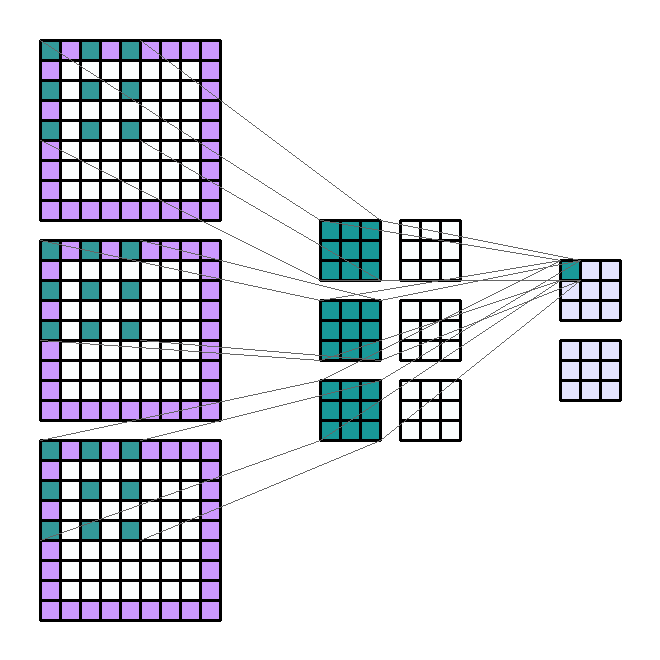

2. Multi-Channel CNN Convolution

\[y(i,j) = \sum_{c=1}^{C} \sum_{m=0}^{K_h-1} \sum_{n=0}^{K_w-1} x_c(i+m,; j+n), w_c(m,n)\]

• $C$ : Number of channels (RGB=3, Feature map=64 and so on)

4. What kind of hyperparameters Convolutional Neural Network(CNN) does have?

1. Stride
2. Padding
3. Filter Size
4. Number of Filters

• $Stride(S)$: How far the filter moves
• $Padding(P)$: Additional extra space
  • Preserve spatial size
  • Allow deeper networks
• $Filter Size(F)$: How many size convolution calculate on spatial locality
• $Number of Filters(K)$: How many various information it made \(Parameters: K(F^2C + 1)\)

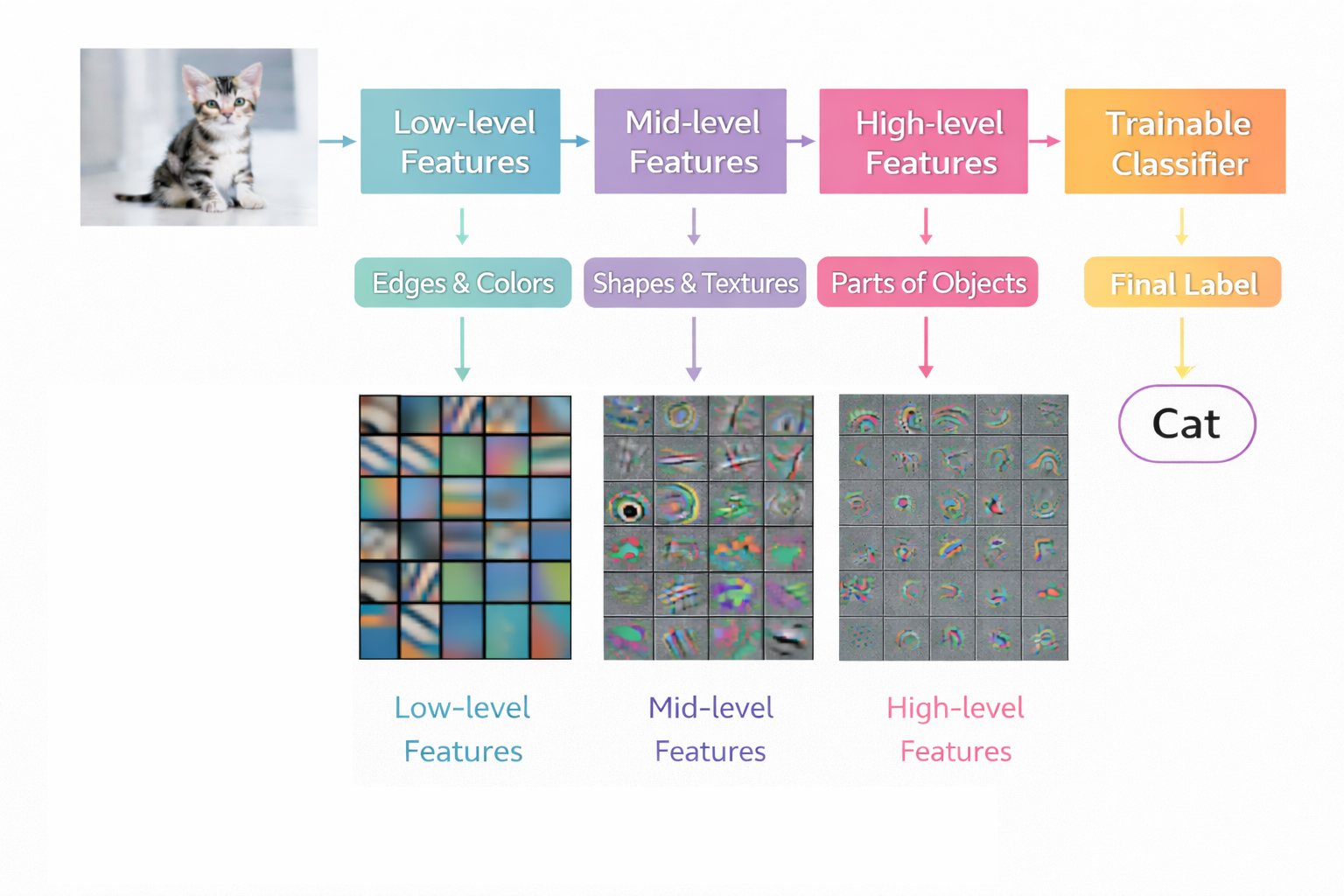

5. How to work Convolutional Neural Network(CNN) on Features?

Assumed to have mulit-level layers we have, the CNN can be distinguished with low, mid, high level features.

Hierarchical Features with Convolutional Layer Level:

Level	Learns
Low	Edges, colors
Mid	Corners, textures
High	Objects, faces

6. Another component of Convolutional Neural Network(CNN)?

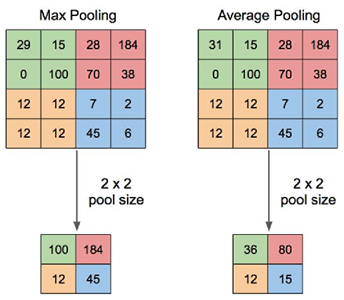

Pooling

1. MaxPooling
2. AveragePooling

It is NOT learnable parameters, it is just for downsampling/reduce computation or sometimes improving robustness
