27. AI Model from deploy to Lambda + S3 with SageMaker

Posted Apr 29, 2026 Updated Apr 30, 2026

10 min read

AI Model from deploy to Lambda + S3 with SageMaker

Prerequisites

Deploy of endpoint from SageMaker
Lambda
S3
API Gateway

1. Connection with endpoint and Lambda

1-1. Check endpoint exist


aws sagemaker describe-endpoint \
  --endpoint-name mnist-cnn-endpoint \
  --query EndpointStatus

Result: InService

1-1. Create Lambda

Simple Connection with model and test

Runtime: python
Add Roles with InvokeEndpoint Policy


{
  "Effect": "Allow",
  "Action": "sagemaker:InvokeEndpoint",
  "Resource": "arn:aws:sagemaker:ap-southeast-2:xxxxxx:endpoint/mnist-cnn-endpoint"
}

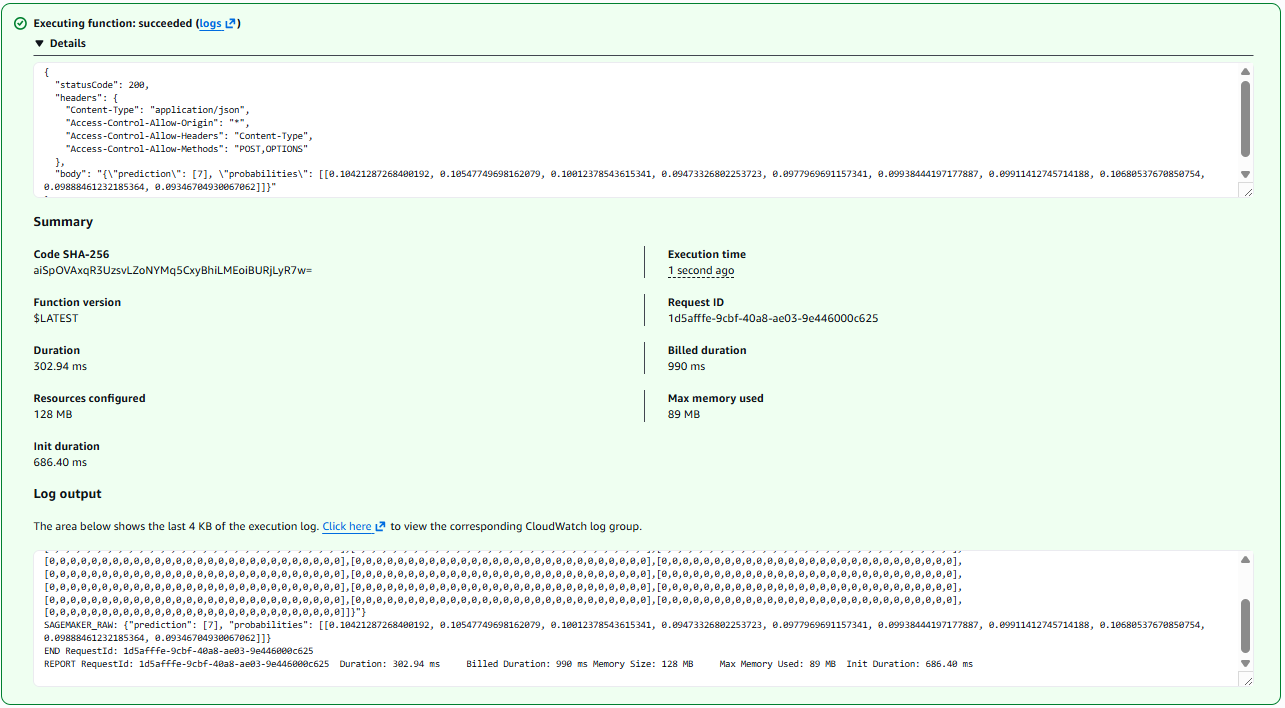

Test: Event JSON


{
  "body": "{\"inputs\":[[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0]]}"
}

Should revise inference.py code for accepting various array shape

inference.py


def input_fn(request_body, content_type):
    import json
    import numpy as np
    import torch

    data = json.loads(request_body)

    array = np.array(data["inputs"], dtype=np.float32)

    # 28x28 -> 1x1x28x28
    if array.shape == (28, 28):
        array = array.reshape(1, 1, 28, 28)

    # 784 -> 1x1x28x28
    elif array.shape == (784,):
        array = array.reshape(1, 1, 28, 28)

    # 1x28x28 -> 1x1x28x28
    elif array.shape == (1, 28, 28):
        array = array.reshape(1, 1, 28, 28)

    tensor = torch.tensor(array, dtype=torch.float32)

    return tensor

1-2. Create S3 as page

Simple page upload and test

Block Public Access settings for this bucket: False
Properties -> Static website hosting
- Static website hosting: Enable
- Index document: index.html
Permissions -> Bucket Policy


{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "PublicReadGetObject",
      "Effect": "Allow",
      "Principal": "*",
      "Action": "s3:GetObject",
      "Resource": "arn:aws:s3:::YOUR_BUCKET_NAME/*"
    }
  ]
}

Upload index.html file


<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8" />
  <meta name="viewport" content="width=device-width, initial-scale=1.0" />
  <title>MNIST Serverless Classifier</title>

  <style>
    * {
      box-sizing: border-box;
    }

    body {
      margin: 0;
      min-height: 100vh;
      font-family: Arial, sans-serif;
      background: linear-gradient(135deg, #eff6ff, #dbeafe, #bfdbfe);
      color: #0f172a;
      display: flex;
      justify-content: center;
      align-items: center;
      padding: 32px;
    }

    .app {
      width: 100%;
      max-width: 860px;
      background: rgba(255, 255, 255, 0.88);
      border: 1px solid rgba(147, 197, 253, 0.55);
      border-radius: 28px;
      box-shadow: 0 24px 70px rgba(37, 99, 235, 0.18);
      overflow: hidden;
      backdrop-filter: blur(14px);
    }

    .header {
      padding: 34px 38px;
      background: linear-gradient(135deg, #2563eb, #38bdf8);
      color: white;
    }

    .header h1 {
      margin: 0;
      font-size: 34px;
      letter-spacing: -0.5px;
    }

    .header p {
      margin: 10px 0 0;
      opacity: 0.92;
      font-size: 16px;
    }

    .content {
      padding: 36px;
      display: grid;
      grid-template-columns: 1fr 1fr;
      gap: 28px;
    }

    .panel {
      background: #ffffff;
      border: 1px solid #dbeafe;
      border-radius: 22px;
      padding: 24px;
      box-shadow: 0 14px 35px rgba(30, 64, 175, 0.08);
    }

    .upload-box {
      border: 2px dashed #93c5fd;
      border-radius: 20px;
      padding: 26px;
      text-align: center;
      background: #f8fbff;
    }

    input[type="file"] {
      display: none;
    }

    .upload-label {
      display: inline-block;
      padding: 13px 22px;
      background: #2563eb;
      color: white;
      border-radius: 999px;
      font-weight: 700;
      cursor: pointer;
      box-shadow: 0 10px 24px rgba(37, 99, 235, 0.28);
      transition: 0.2s ease;
    }

    .upload-label:hover {
      transform: translateY(-1px);
      background: #1d4ed8;
    }

    .hint {
      margin-top: 14px;
      font-size: 13px;
      color: #64748b;
    }

    .preview-frame {
      margin-top: 22px;
      width: 100%;
      aspect-ratio: 1 / 1;
      border-radius: 22px;
      border: 1px solid #bfdbfe;
      background:
        linear-gradient(45deg, #f1f5f9 25%, transparent 25%),
        linear-gradient(-45deg, #f1f5f9 25%, transparent 25%),
        linear-gradient(45deg, transparent 75%, #f1f5f9 75%),
        linear-gradient(-45deg, transparent 75%, #f1f5f9 75%);
      background-size: 24px 24px;
      background-position: 0 0, 0 12px, 12px -12px, -12px 0;
      display: flex;
      justify-content: center;
      align-items: center;
      overflow: hidden;
    }

    canvas {
      width: 82%;
      height: 82%;
      image-rendering: pixelated;
      background: white;
      border-radius: 16px;
      border: 1px solid #e0f2fe;
      box-shadow: inset 0 0 0 1px rgba(37, 99, 235, 0.06);
    }

    .button-row {
      margin-top: 24px;
      display: flex;
      gap: 12px;
    }

    button {
      flex: 1;
      border: 0;
      border-radius: 16px;
      padding: 14px 18px;
      font-size: 15px;
      font-weight: 700;
      cursor: pointer;
      transition: 0.2s ease;
    }

    .predict-btn {
      color: white;
      background: linear-gradient(135deg, #2563eb, #0ea5e9);
      box-shadow: 0 14px 28px rgba(37, 99, 235, 0.25);
    }

    .predict-btn:hover {
      transform: translateY(-1px);
      box-shadow: 0 18px 36px rgba(37, 99, 235, 0.32);
    }

    .clear-btn {
      background: #eff6ff;
      color: #1d4ed8;
      border: 1px solid #bfdbfe;
    }

    .clear-btn:hover {
      background: #dbeafe;
    }

    .result-card {
      min-height: 100%;
      display: flex;
      flex-direction: column;
      justify-content: space-between;
    }

    .status-label {
      color: #2563eb;
      font-size: 13px;
      font-weight: 800;
      text-transform: uppercase;
      letter-spacing: 0.08em;
    }

    .result-main {
      margin-top: 22px;
    }

    .prediction-number {
      font-size: 92px;
      line-height: 1;
      font-weight: 900;
      color: #1d4ed8;
      letter-spacing: -5px;
    }

    .result-text {
      margin-top: 10px;
      color: #475569;
      font-size: 16px;
      line-height: 1.5;
      word-break: break-word;
    }

    .prob-box {
      margin-top: 22px;
      background: #f8fafc;
      border: 1px solid #e0f2fe;
      border-radius: 18px;
      padding: 16px;
      font-family: Consolas, monospace;
      font-size: 12px;
      color: #334155;
      max-height: 180px;
      overflow: auto;
      white-space: pre-wrap;
    }

    .footer {
      padding: 0 36px 34px;
      color: #64748b;
      font-size: 13px;
    }

    @media (max-width: 760px) {
      .content {
        grid-template-columns: 1fr;
      }

      .header h1 {
        font-size: 28px;
      }

      .prediction-number {
        font-size: 72px;
      }
    }
  </style>
</head>

<body>
  <main class="app">
    <section class="header">
      <h1>MNIST Serverless Classifier</h1>
      <p>Upload a handwritten digit image and classify it through API Gateway, Lambda, and SageMaker.</p>
    </section>

    <section class="content">
      <div class="panel">
        <div class="upload-box">
          <label for="fileInput" class="upload-label">Choose Image</label>
          <input type="file" id="fileInput" accept="image/*" />
          <div class="hint">PNG, JPG, or any handwritten digit image</div>
        </div>

        <div class="preview-frame">
          <canvas id="canvas" width="28" height="28"></canvas>
        </div>

        <div class="button-row">
          <button class="predict-btn" onclick="predict()">Predict</button>
          <button class="clear-btn" onclick="clearImage()">Clear</button>
        </div>
      </div>

      <div class="panel result-card">
        <div>
          <div class="status-label">Prediction Result</div>

          <div class="result-main">
            <div id="predictionNumber" class="prediction-number">—</div>
            <div id="result" class="result-text">Waiting for image...</div>
          </div>
        </div>

        <div id="probabilities" class="prob-box">probabilities will appear here</div>
      </div>
    </section>

    <div class="footer">
      The image is resized to 28×28, converted to grayscale, normalized, and sent as JSON.
    </div>
  </main>

  <script>
    const API_URL = "https://{ARN_API_Gateway_ID}.execute-api.ap-southeast-2.amazonaws.com/predict";

    const fileInput = document.getElementById("fileInput");
    const canvas = document.getElementById("canvas");
    const ctx = canvas.getContext("2d");
    const result = document.getElementById("result");
    const predictionNumber = document.getElementById("predictionNumber");
    const probabilities = document.getElementById("probabilities");

    let mnistInput = null;

    fileInput.addEventListener("change", () => {
      const file = fileInput.files[0];
      if (!file) return;

      const img = new Image();

      img.onload = () => {
        ctx.clearRect(0, 0, 28, 28);
        ctx.fillStyle = "white";
        ctx.fillRect(0, 0, 28, 28);
        ctx.drawImage(img, 0, 0, 28, 28);

        const imageData = ctx.getImageData(0, 0, 28, 28);
        const pixels = [];

        for (let i = 0; i < imageData.data.length; i += 4) {
          const r = imageData.data[i];
          const g = imageData.data[i + 1];
          const b = imageData.data[i + 2];

          let gray = (r + g + b) / 3.0 / 255.0;
          gray = (gray - 0.1307) / 0.3081;

          pixels.push(gray);
        }

        const rows = [];
        for (let i = 0; i < 28; i++) {
          rows.push(pixels.slice(i * 28, (i + 1) * 28));
        }

        mnistInput = [[rows]];

        predictionNumber.innerText = "—";
        result.innerText = "Image loaded. Ready to predict.";
        probabilities.innerText = "ready";
      };

      img.src = URL.createObjectURL(file);
    });

    async function predict() {
      if (!mnistInput) {
        result.innerText = "Please upload an image first.";
        return;
      }

      predictionNumber.innerText = "…";
      result.innerText = "Calling Lambda...";
      probabilities.innerText = "waiting for response...";

      try {
        const res = await fetch(API_URL, {
          method: "POST",
          headers: {
            "Content-Type": "application/json"
          },
          body: JSON.stringify({
            inputs: mnistInput
          })
        });

        const data = await res.json();

        if (!res.ok) {
          predictionNumber.innerText = "!";
          result.innerText = "Error: " + JSON.stringify(data);
          probabilities.innerText = "";
          return;
        }

        predictionNumber.innerText = data.prediction[0];
        result.innerText = "The model predicted digit " + data.prediction[0] + ".";
        probabilities.innerText = JSON.stringify(data.probabilities[0], null, 2);

      } catch (err) {
        predictionNumber.innerText = "!";
        result.innerText = "Request failed: " + err.message;
        probabilities.innerText = "";
      }
    }

    function clearImage() {
      fileInput.value = "";
      mnistInput = null;

      ctx.clearRect(0, 0, 28, 28);

      predictionNumber.innerText = "—";
      result.innerText = "Waiting for image...";
      probabilities.innerText = "probabilities will appear here";
    }
  </script>
</body>
</html>

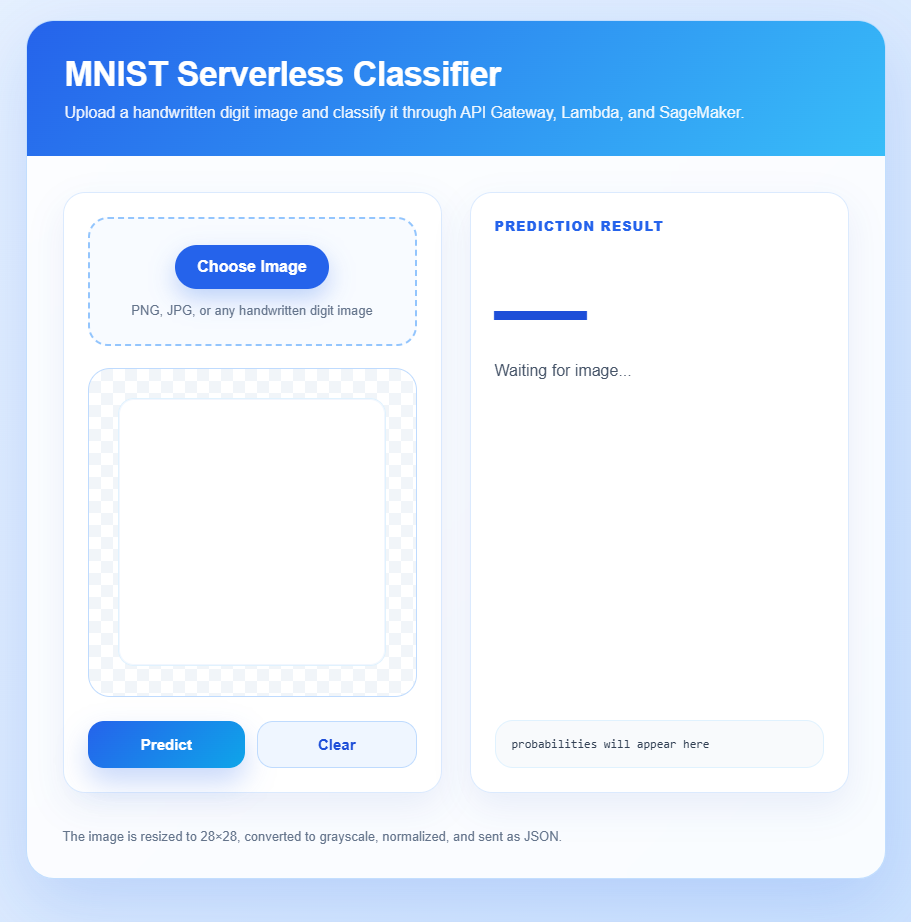

Check Bucket website endpoint from Static website hosting

1-3. Create API Gateway

HTTP API build
Integration: lambda
Configure routes
- Method: POST
- Name: /predict
Configure stages
- Add stage
- Auto-deploy: false
CORS
- Setting as follow:

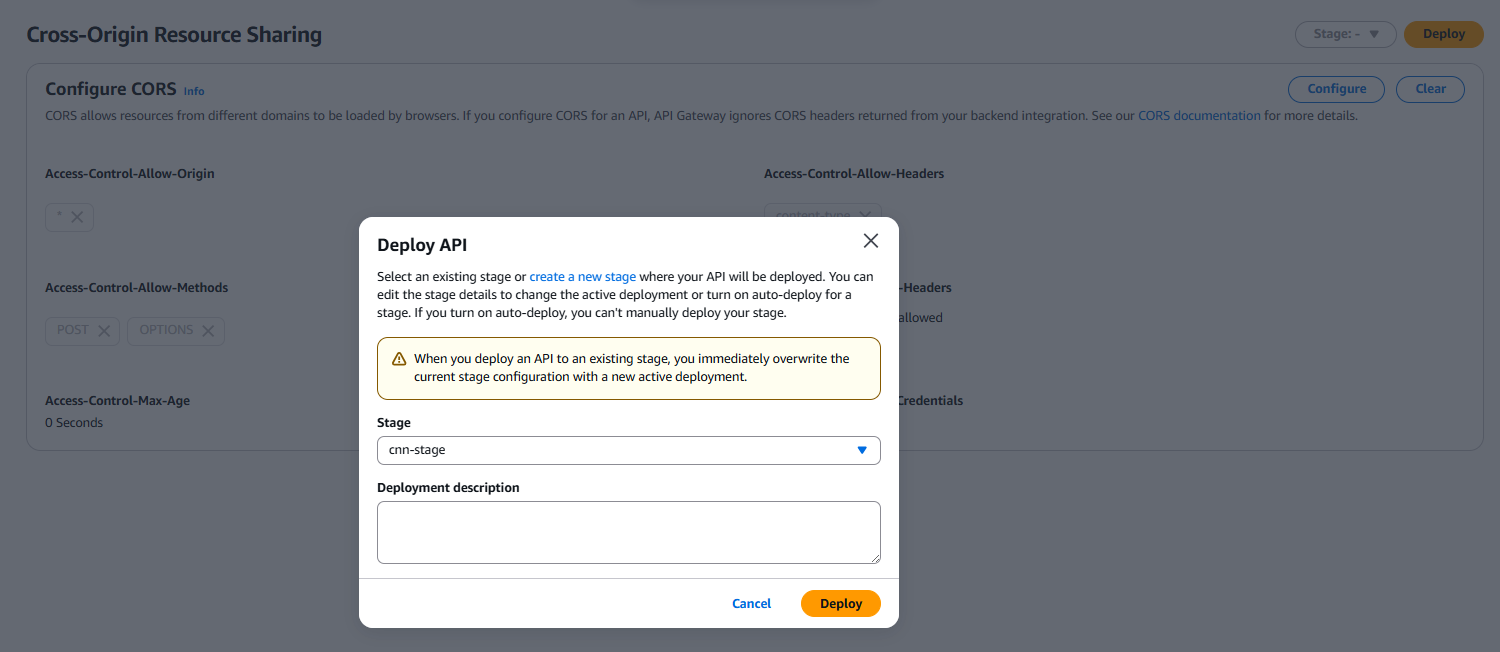

- Deploy to new stage you made

1-4. Connect Lambda with API Gateway

Integrate Lambda and Gateway

Already you have: Integration - lambda

1-5. Connect S3 with API Gateway

Integrate CORS S3 URL and API Gateway ARN

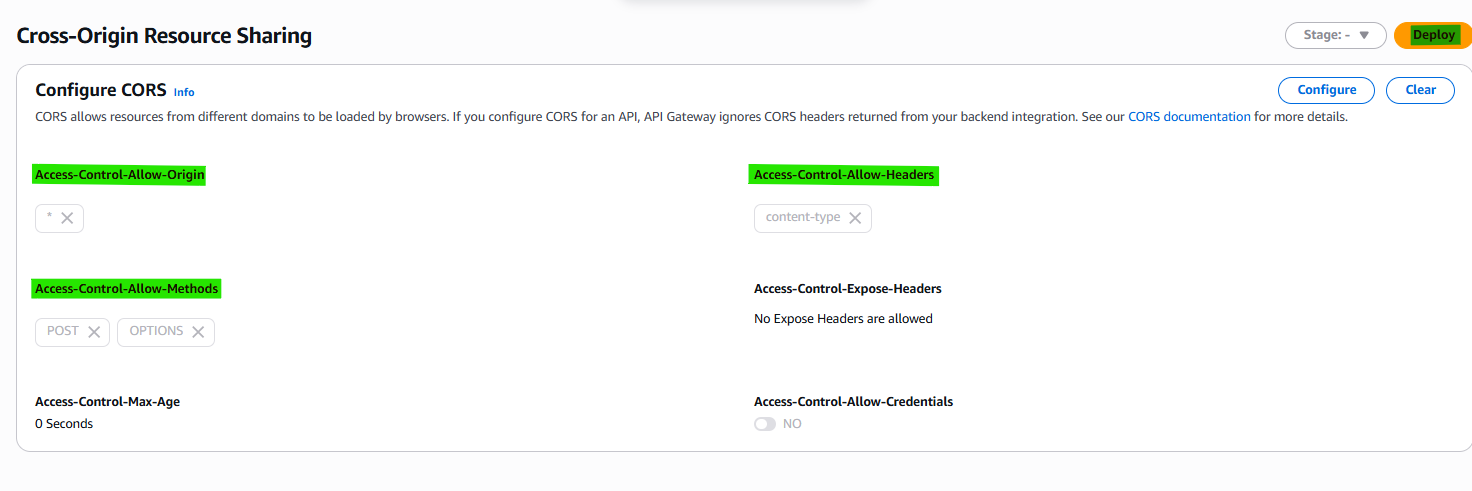

on CORS

Allow-Origin: *
Allow-Methods: POST, OPTIONS
Allow-Headers: content-type
Allow-Credentials: NO

revise index.html

const API_URL = "https://{ARN_API_Gateway_ID}.execute-api.{Region}.amazonaws.com/{Stage_Name}/{Route_Name}";
+
arn:aws:apigateway:ap-southeast-2::/apis/eolipx2is8/routes/ip1seyf
+
API Gateway/StageName: cnn-stage
=
const API_URL = "https://eolipx2is8.execute-api.ap-southeast-2.amazonaws.com/cnn-stage/predict";

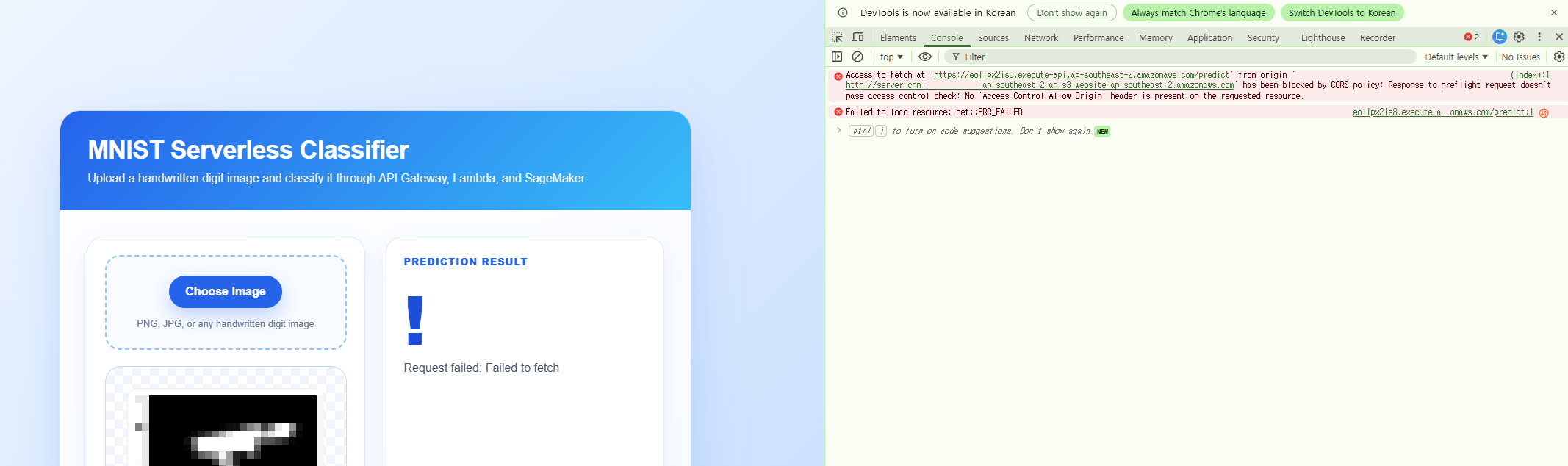

If you fail predict button, on the s3 index.html website, press F12 and check console

CORS

CORS (Cross-Origin Resource Sharing) is a security mechanism used by browsers to control requests between different origins (domains, ports, or protocols). It ensures that a web application can only access resources from another origin if that server explicitly allows it.

What happens if CORS is enabled

The server includes headers like:

Access-Control-Allow-Origin The browser allows the frontend (e.g., your S3 website) to read responses from the API (e.g., API Gateway). Your app works normally.

What happens if CORS is not enabled

The browser blocks the response, even if the server successfully processed the request.

You will see errors like:

blocked by CORS policy The backend still runs, but the frontend cannot access the result.

In short

CORS is required to allow your frontend to safely communicate with a backend on a different origin. Without it, the browser blocks the response for security reasons.
