NAT Gateway

---

Prerequisites

---

1. NAT Gateway

NAT Gateway is an essential component for secure AWS networking. It enables Outbound internet access for private subnet resources

NAT Gateway is:

• A managed network service
• Placed in a public subnet
• Used by private subnet resources

Private instances → access the internet Internet → cannot directly access private instances

Private subnet:

• No route to Internet Gateway
• No public IP
• Not accessible from internet

👉 Problem:

• Cannot install packages
• Cannot call external APIs
• Cannot update systems

👉 Solution:

NAT Gateway

👉 High availability:

• Create NAT Gateway per AZ

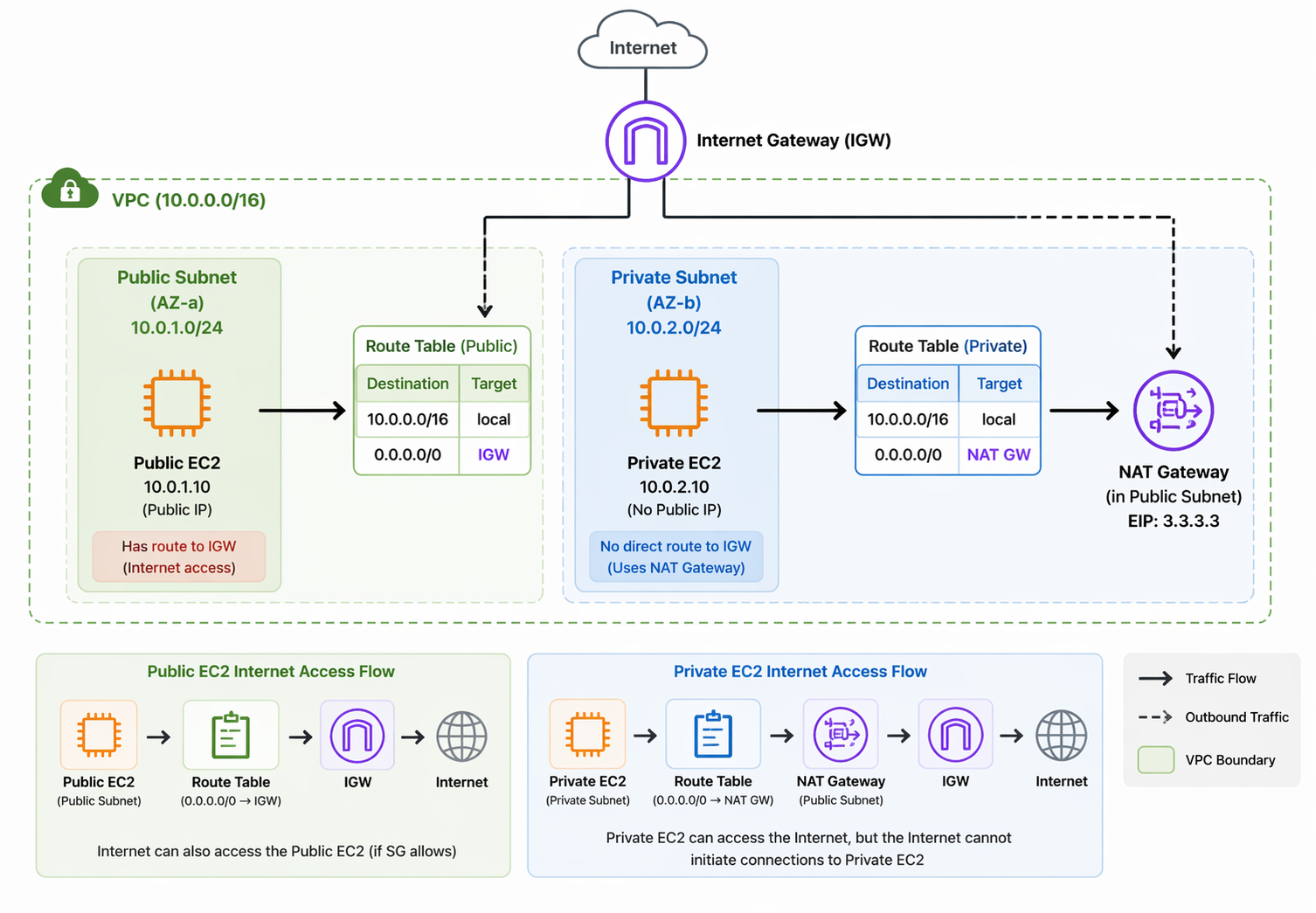

2. How to work NAT Gateway

Internet
   ↓
[ IGW ]
   ↓
[ Public Subnet ]
   └── NAT Gateway
   ↓
[ Private Subnet ]
   └── EC2 / RDS

2-1. NAT Gateway in Public Subnet

• Must be placed in a subnet with IGW access

2-2. Elastic IP Required

• NAT Gateway must have a public IP

2-3. Route Table (Private Subnet)

Example:

Destination: 0.0.0.0/0
Target: NAT Gateway

All outbound traffic goes through NAT Gateway

2-4. Security Behavior

NAT = outbound only

✔️ Allowed

• Private → Internet (outbound)

❌ Not Allowed

• Internet → Private (inbound)

2-5. Cost Consideration

• Charged per hour
• Charged per data processed

3. How to create NAT Gateway

3-1. Search VPC

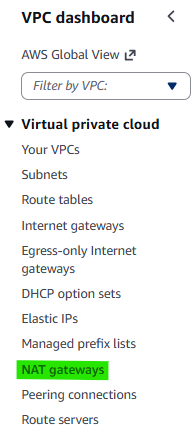

3-2. Click Navigation pane → “NAT gateways”

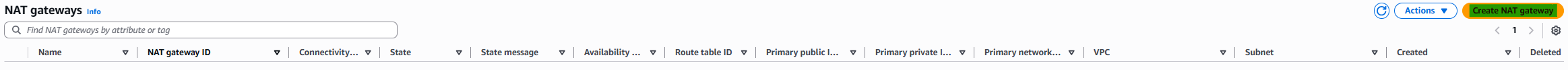

3-3. Click Button → “Create NAT gateway”

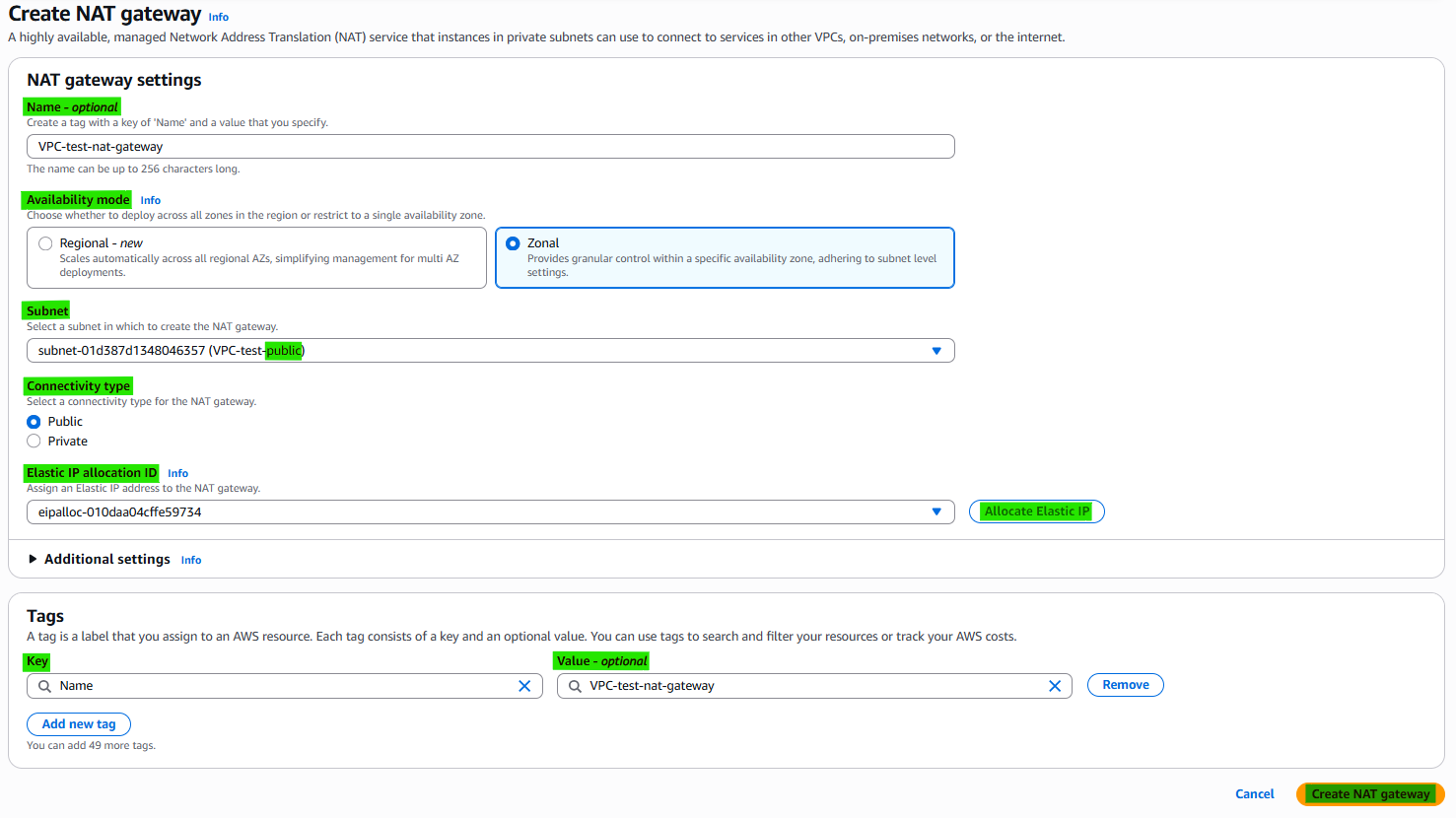

3-4. NAT gateway settings

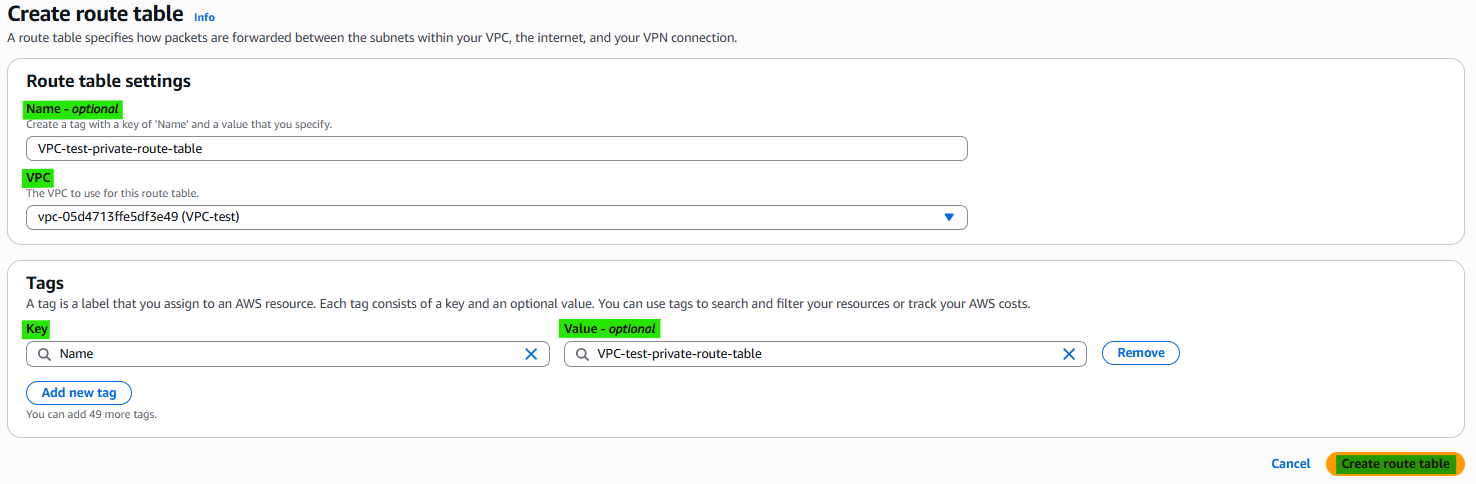

3-5. Step 1. Create Route tables

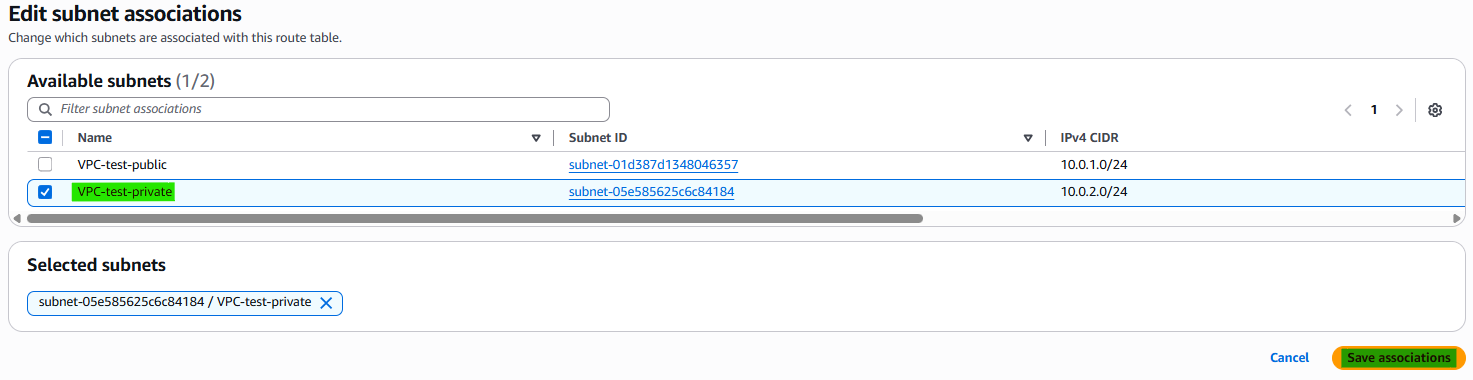

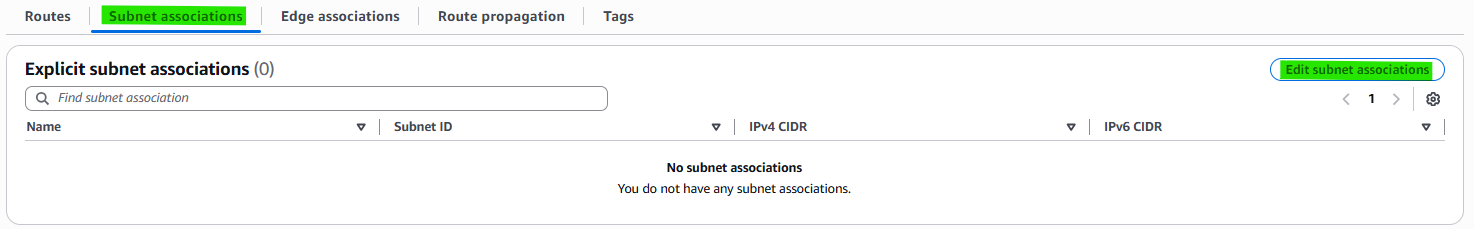

3-6. Step 2. Edit Subnet associations

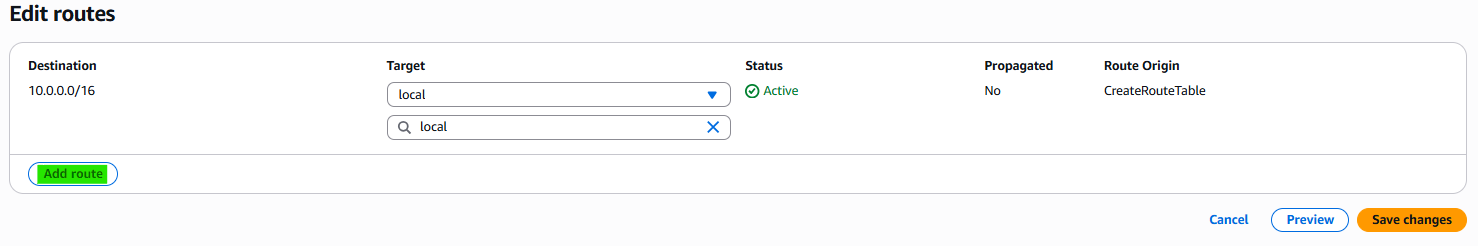

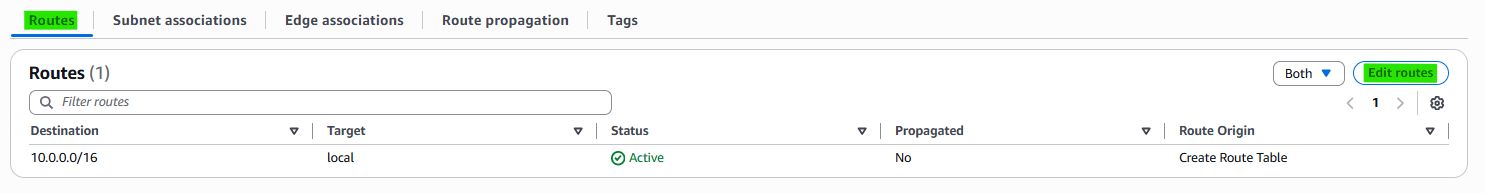

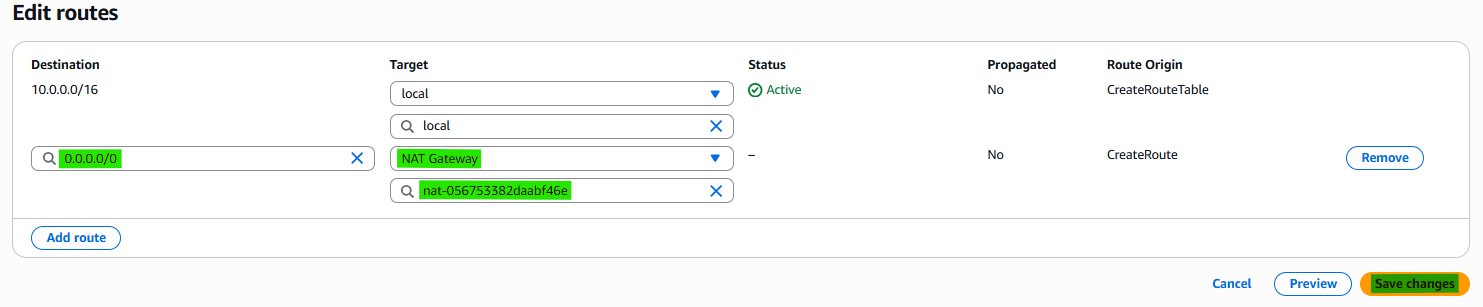

3-7. Step 3. Edit Routes

4. Related Concepts

• Components
  • VPC
  • Subnet
  • Internet Gateway
  • Route Tables
