01. Continuous Integration(CI) & Continuous Deployment(CD)

Continuous Integration(CI) & Continuous Deployment(CD)

Prerequisites

1

1. Git

What is Continuous Integration(CI) & Continuous Deployment(CD)

1. What is Continuous Integration(CI) & Continuous Deployment(CD)?

1
2
3

- Continuous Integration(CI): practice of <span style="color:cyan">automatically building and testing code whenever changes are pushed</span> to a shared repository.

- Continuous Deployment(CD): practice of <span style="color:cyan">automatically releasing code changes to production</span> after successful testing.

CI/CD is a development practice that automates the process of building, testing and deploying applications.

2. Why use Continuous Integration(CI) & Continuous Deployment(CD)?

1

 Minimize Mistake that we would usually made

I heard CI/CD process, but i didn’t meet the situation. Because the setting of CI/CD is charged by my boss for various security and stable setting. But Now i just wanna more understand how i can control the Integration process and testing for stable program.

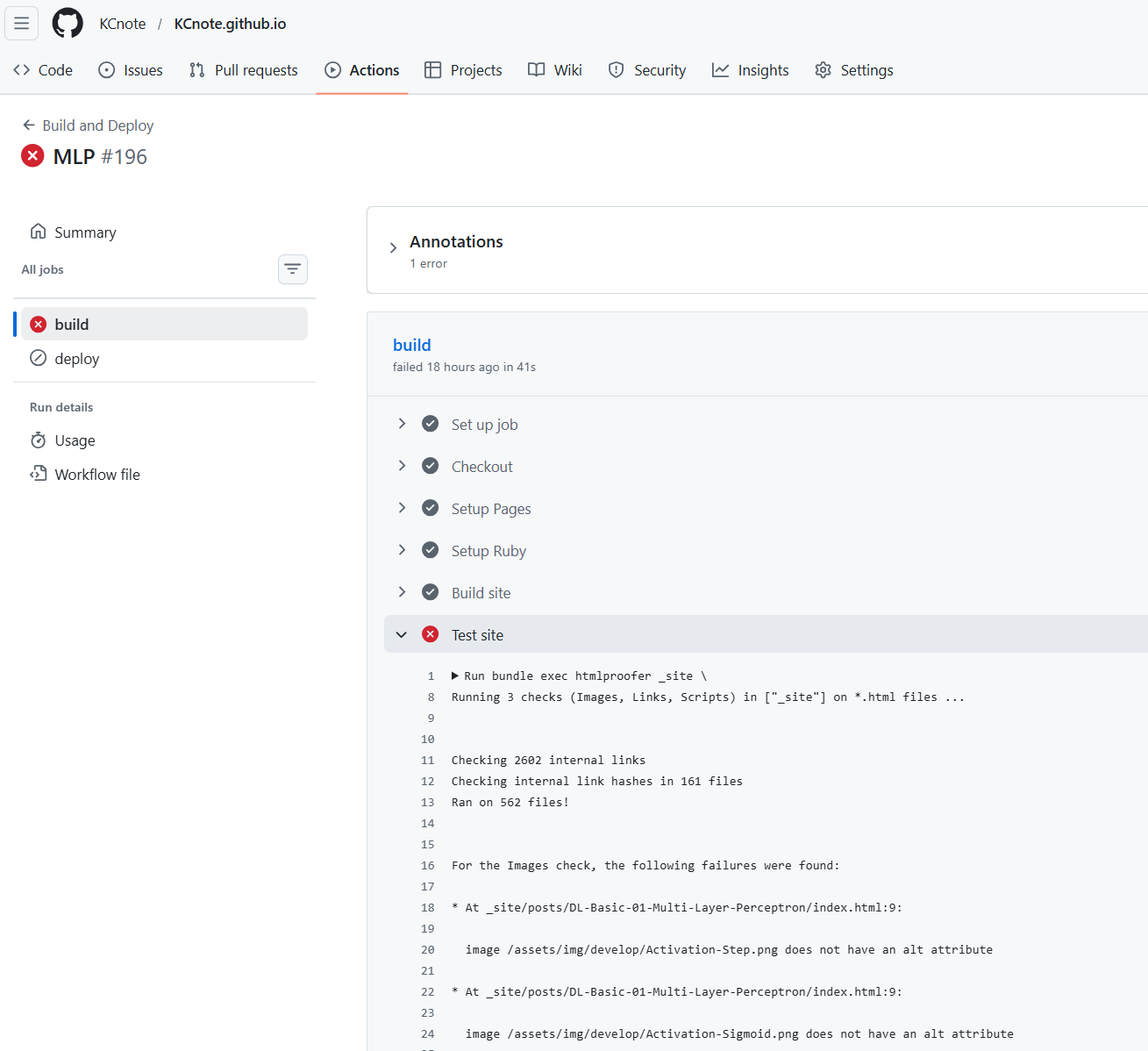

Fortunately(?), I met the problem that jeklly CI/CD occured and i hope to know how can i deal with the situation and how to make the setting of CI/CD. Catch-CI-CD

  1. $Set: up: job$: GitHub created a virtual machine and initializaed the workflow.
  2. $Checkout$: The repository code was cloned into the runner environment.
  3. $Setup: Pages$: GitHub Pages environment was configured.
  4. $Setup: Ruby$: Ruby was installed and configured properly for the build process.
  5. $Build: site$: Program build the static site and generated the directory.
  6. $Test: site$: Check the validation step.
  7. $Upload: site: artifact$: Generated build output as an artifact so that it can be used in later stages of the workflow, such as deployment.
  8. $Post: Checkout$: Cleanup operations after the checkout step
  9. $Complete: job$: The workflow finished.

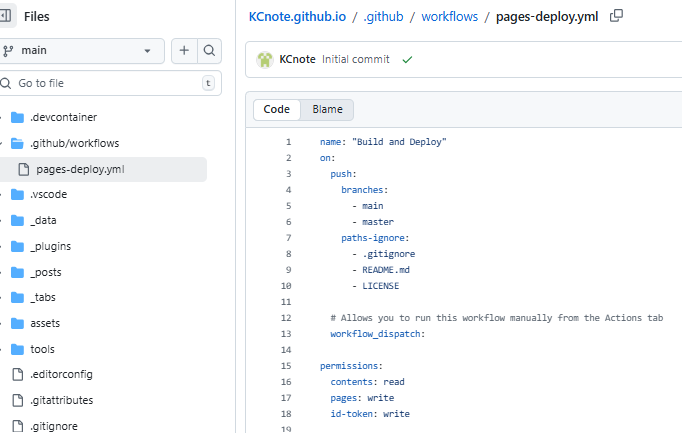

hierarchical-CI-CD

3. How use Continuous Integration(CI) & Continuous Deployment(CD)?

1

Command

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

name: "Build and Deploy"
on:
  push:
    branches:
      - main
      - master
    paths-ignore:
      - .gitignore
      - README.md
      - LICENSE

  # Allows you to run this workflow manually from the Actions tab
  workflow_dispatch:

permissions:
  contents: read
  pages: write
  id-token: write

# Allow one concurrent deployment
concurrency:
  group: "pages"
  cancel-in-progress: true

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@v4
        with:
          fetch-depth: 0
          # submodules: true
          # If using the 'assets' git submodule from Chirpy Starter, uncomment above
          # (See: https://github.com/cotes2020/chirpy-starter/tree/main/assets)

      - name: Setup Pages
        id: pages
        uses: actions/configure-pages@v4

      - name: Setup Ruby
        uses: ruby/setup-ruby@v1
        with:
          ruby-version: 3.3
          bundler-cache: true

      - name: Build site
        run: bundle exec jekyll b -d "_site$"
        env:
          JEKYLL_ENV: "production"

      - name: Test site
        run: |
          bundle exec htmlproofer _site \
            \-\-disable-external \
            \-\-ignore-urls "/^http:\/\/127.0.0.1/,/^http:\/\/0.0.0.0/,/^http:\/\/localhost/"

      - name: Upload site artifact
        uses: actions/upload-pages-artifact@v3
        with:
          path: "_site$"

  deploy:
    environment:
      name: github-pages
      url: $
    runs-on: ubuntu-latest
    needs: build
    steps:
      - name: Deploy to GitHub Pages
        id: deployment
        uses: actions/deploy-pages@v4

1. Section 1. name of CI pipeline

1

name: "Build and Deploy"

2. Section 2. trigger of CI pipline

1
2
3
4
5

on:
  push:
    branches:
      - main
      - master

If we push the code on another branch or name, it won’t be prcoessed

3. Section 3. Ignore files of CI pipline when we’ll push

1
2
3
4

paths-ignore:
  - .gitignore
  - README.md
  - LICENSE

4. Section 4. Allows you to run this workflow manually from the Actions tab

1

workflow_dispatch:

5. Section 5. Set authorization for CD

1
2
3
4

permissions:
  contents: read
  pages: write
  id-token: write

6. Section 6. Control process with another process at the same time

1
2
3

concurrency:
  group: "pages"
  cancel-in-progress: true

7. Section 7. CI step

7-1. Build job

1
2
3

jobs:
  build:
    runs-on: ubuntu-latest

$\rightarrow Process: on: Ubuntu: Virutal: Server $

7-2. Checkout

1
2
3

steps:
    - name: Checkout
      uses: actions/checkout@v4

$\rightarrow Clone: code: from: Github: to: CI: Server $

7-3. Setup Pages

1
2
3

- name: Setup Pages
  id: pages
  uses: actions/configure-pages@v4

$\rightarrow Prepare: environment: of: Github: page$

7-4. Setup Ruby

1
2
3
4
5

- name: Setup Ruby
  uses: ruby/setup-ruby@v1
  with:
      ruby-version: 3.3
      bundler-cache: true

$\rightarrow Install: Ruby: and: activate: bundler: caches$

7-5. Build Site

1
2
3
4

- name: Build site
  run: bundle exec jekyll b -d "_site$"
  env:
      JEKYLL_ENV: "production"

$\rightarrow Trasnform: Markdown: to: HTML: and: Make: $ _ $site: folder$

❗7-6. Test Site

1
2
3
4
5

- name: Test site
  run: |
      bundle exec htmlproofer _site \
      \-\-disable-external \
      \-\-ignore-urls "/^http:\/\/127.0.0.1/,/^http:\/\/0.0.0.0/,/^http:\/\/localhost/"

$\rightarrow Check: Validation$

7-7. Uplod Site Artifact for deploy job

1
2
3
4

- name: Upload site artifact
  uses: actions/upload-pages-artifact@v3
  with:
      path: "_site$"

$\rightarrow Save: from: $ _ $site: to: artifact$

8. Section 8. CD step

8-1. Deploy Job

1
2
3
4
5
6
7
8
9
10

deploy:
  environment:
      name: github-pages
      url: $
  runs-on: ubuntu-latest
  needs: build
  steps:
      - name: Deploy to GitHub Pages
      id: deployment
      uses: actions/deploy-pages@v4

Another Example

- Python

  1. hierarchical structure
1
2
3
4
5

project/
project/
 ├── app.py
 ├── test_app.py
 └── .github/workflows/ci.yml
  1. yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

name: CI

on:
  push:
    branches: [ main ]

jobs:
  test:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - name: Setup Python
        uses: actions/setup-python@v5
        with:
          python-version: 3.11
      - run: pip install pytest
      - run: pytest

- C++

  1. hierarchical structure
1
2
3
4
5
6
7
8
9

project/
 ├── src/
 │    └── add.cpp
 ├── include/
 │    └── add.h
 ├── tests/
 │    └── test_add.cpp
 ├── CMakeLists.txt
 └── .github/workflows/ci.yml
  1. yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

name: C++ CI

on:
  push:
    branches: [ main ]

jobs:
  build-and-test:
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      - name: Install dependencies
        run: sudo apt-get install -y cmake libgtest-dev

      - name: Configure
        run: cmake -S . -B build

      - name: Build
        run: cmake --build build

      - name: Run Tests
        run: ctest --test-dir build
  1. CMake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

#CMake
cmake_minimum_required(VERSION 3.14)
project(MyProject)

set(CMAKE_CXX_STANDARD 17)

add_library(add src/add.cpp)
target_include_directories(add PUBLIC include)

enable_testing()
find_package(GTest REQUIRED)

add_executable(runTests tests/test_add.cpp)
target_link_libraries(runTests add GTest::GTest GTest::Main)

add_test(NAME AddTests COMMAND runTests)

CMake is a build system generator that simplifies cross-platform compilation, dependency management, and testing in C++ projects. That’s why we use CMake

Deploy, Deploy - CI/CD
Deploy Deploy - CI/CD
