21. Concurrency Processing

Concurrency Processing

---

Prerequisites

python

---

1. Concurrency Processing

In image processing or real-vision systems, heavy processing can easily block the camera input pipline. In non-concurreny example, frame cpature, image processing and display are executed sequentially in a single thread. But in the concurrency version, the camera capture and image processing are separated into different threads. The capture thread continuously reads the latest frame from the webcam and pushes it into a queue, while the processing thread independently performs the heavy operation.

This design is commonly used in real-time computer vision systems because maintaining low latency is usually more important than processing every single frame.

And this processing can be extented by save logs when processing failed or save images we want to find without blocking important main processing.

2. Concurrency Processing Code

import cv2 as cv
import threading
import queue
import time

raw_queue = queue.Queue(maxsize=1)
processed_queue = queue.Queue(maxsize=1)
stop_event = threading.Event()

latest_frame = None
latest_processed = None
frame_lock = threading.Lock()


def put_latest(q, item):
    if q.full():
        try:
            q.get_nowait()
        except queue.Empty:
            pass

    try:
        q.put_nowait(item)
    except queue.Full:
        pass


def capture_thread():
    global latest_frame

    cap = cv.VideoCapture(0)

    if not cap.isOpened():
        print("Cannot open camera")
        stop_event.set()
        return

    while not stop_event.is_set():
        ret, frame = cap.read()
        if not ret:
            continue

        with frame_lock:
            latest_frame = frame.copy()

        put_latest(raw_queue, frame)

    cap.release()


def processing_thread():
    global latest_processed

    while not stop_event.is_set():
        try:
            frame = raw_queue.get(timeout=0.1)
        except queue.Empty:
            continue

        processed = frame.copy()

        for _ in range(500):
            processed = cv.GaussianBlur(processed, (11, 11), 0)

        with frame_lock:
            latest_processed = processed.copy()


def main():
    t1 = threading.Thread(target=capture_thread)
    t2 = threading.Thread(target=processing_thread)

    t1.start()
    t2.start()

    while not stop_event.is_set():
        with frame_lock:
            frame = None if latest_frame is None else latest_frame.copy()
            processed = None if latest_processed is None else latest_processed.copy()

        if frame is not None:
            cv.imshow("Original - Live", frame)

        if processed is not None:
            cv.imshow("Processed - Slow", processed)

        if cv.waitKey(1) & 0xFF == ord("q"):
            stop_event.set()
            break

    t1.join()
    t2.join()
    cv.destroyAllWindows()

if __name__ == "__main__":
    main()

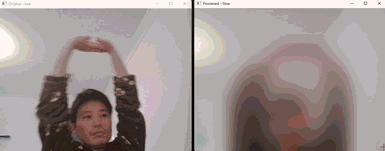

Result: Concureency processing

3. None Concurrency Processing Code

import cv2 as cv

def main():
    cap = cv.VideoCapture(0)

    if not cap.isOpened():
        print("Cannot open camera")
        return

    while True:
        ret, frame = cap.read()

        if not ret:
            print("Failed to read frame")
            break

        processed = frame.copy()

        for _ in range(500):
            processed = cv.GaussianBlur(processed,(11, 11),0)

        cv.imshow("Original - Live", frame)
        cv.imshow("Processed", processed)

        if cv.waitKey(1) & 0xFF == ord("q"):
            break

    cap.release()
    cv.destroyAllWindows()


if __name__ == "__main__":
    main()

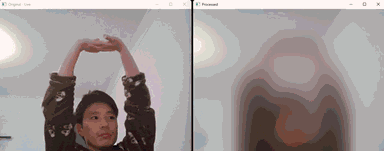

Result: No-Concureency processing
